Teleporters

Teleporters use the TTT Trigger Teleport component. Add it to an empty GameObject, then size the trigger collider to cover the area that should teleport players.

Basic Setup

  1. Create an empty GameObject for the teleporter.
  2. Add TTT Trigger Teleport.
  3. Resize the collider box to fit the teleport area.
  4. Create a separate empty GameObject for the destination.
  5. Put the destination object where the teleported player's feet should arrive.

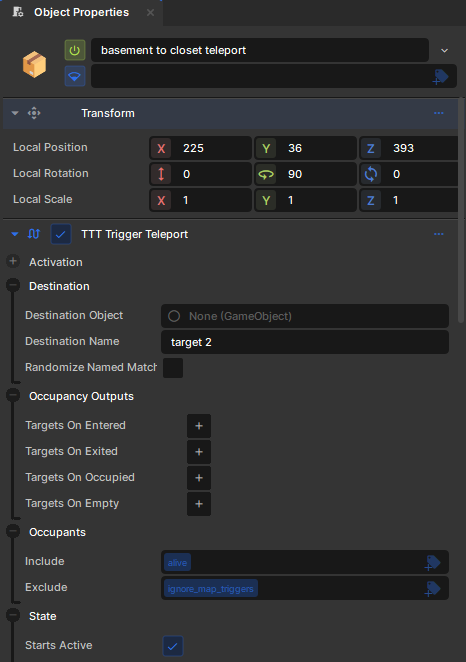

  6. Set Destination Object directly with the dropper tool, or set Destination Name to the destination GameObject's name.

Destination Options

Option What it does
Destination Object Direct reference to the destination GameObject.
Destination Name Finds a destination by exact GameObject name.
Randomize Named Matches If more than one object matches Destination Name, chooses a random match instead of the first one found.
Use Destination Rotation If enabled, the player faces the destination object's rotation after teleporting. Disable it to preserve the player's current facing.

Safety Behavior

Teleporters try to place the player safely at the destination. If the destination is missing or blocked, the teleport fails instead of trapping the player inside geometry.

Reentry Cooldown Seconds prevents the same player from immediately bouncing back and forth between chained teleport triggers. The default is short, but it is usually enough for paired teleporters.

Map IO Outputs

Output When it fires
TargetsOnTeleported Fired after a player is successfully teleported.
TargetsOnTeleportFailed Fired when the destination is missing or blocked.

You can use these outputs to play effects, trigger sounds, lock a trap after use, or branch logic when a teleport destination is unavailable.

Common Mistakes

  • Forgetting to give the destination object a unique name when using Destination Name.
  • Putting the destination inside the floor or too close to solid geometry.
  • Creating two teleporters that immediately touch each other's trigger volumes without enough spacing.
